0,4Kw 1PH VSD-Pump Inverter GD100-0R4G-SS2-PV

Product Overview

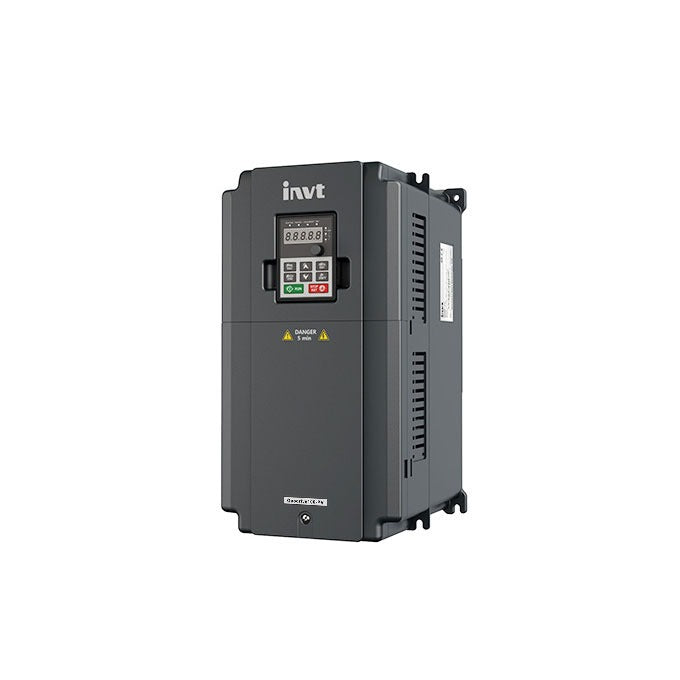

The GD100-0R4G-SS2-PV is a 0.4 kW (or 0.5 HP) solar pump Variable Speed Drive (VSD) from the INVT Goodrive100-PV series. It is a frequency inverter designed to power a standard 220V single-phase AC water pump using DC power from solar panels.

Key Features

• Advanced MPPT: Utilizes an advanced Maximum Power Point Tracking (MPPT) algorithm to ensure the highest possible efficiency (up to 99%) in converting solar power to run the pump.
• Automatic Operation: Automatically starts and sleeps depending on sunlight intensity, with no need for manual parameter setting after the initial connection. Built-in Protections: Includes safeguards for PV over-voltage, reverse polarity, and over-temperature to extend the product's lifespan.Low Voltage Support: Because it is 2.2kW or smaller, it can be configured with an optional boost module to operate effectively even in low-light or low-voltage conditions.
