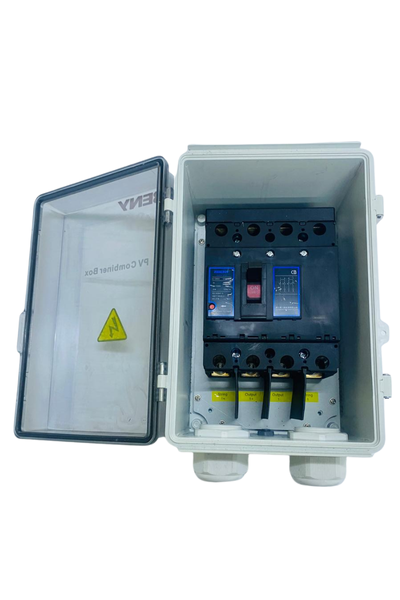

DC Combiner Box DC1200V BDH-250 125A

Product Overview

The DC Combiner Box DC1200V BDH-250 125A is an electrical safety enclosure designed for large-scale solar photovoltaic (PV) systems. It consolidates the DC power from multiple solar panel strings into a single output, providing essential protection for the system and personnel.

Key Features

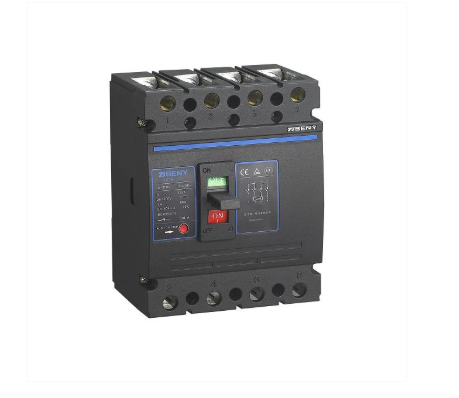

• The "BDH-250 125A" part of the name refers to the built-in DC switch. It is a moulded case isolator switch that can safely disconnect the PV array from the rest of the system.
• The DC1200V rating means the combiner box can handle a maximum system voltage of 1200V DC. This is ideal for large solar arrays where panels are connected in long series strings to produce high voltage.
• The switch is rated for 125A, allowing it to manage the combined current from the parallel strings of panels.
