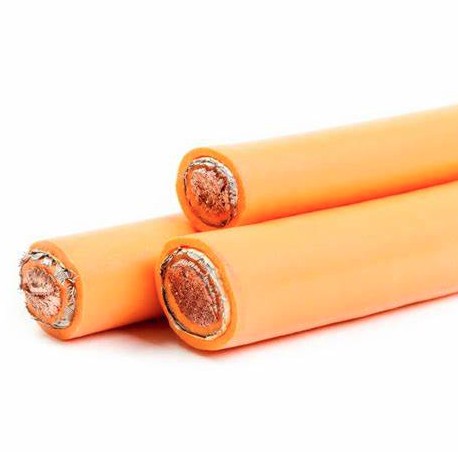

High Voltage Battery Cable 25mm Double Layer PVC Orange

Product Overview

A high-voltage (HV) battery cable with a 25mm² cross-section, double-layer PVC insulation, and an orange outer sheath is a specialized, flexible power cable used primarily in battery energy storage systems (BESS) and electric vehicles (EVs). The orange color is a key safety indicator for high-voltage DC applications..

Key Features

• 25mm² conductor size: The cross-sectional area of the high-conductivity copper conductor is 25mm², making it suitable for carrying high DC currents, often up to 100 amps, between components like a battery bank and an inverter.
• High voltage rating: These cables are typically rated for 1000V DC, a common voltage in solar and battery storage systems. They can also be suitable for alternating current (AC) high-voltage applications.
• Double-layer insulation: The double-layered insulation provides enhanced protection against electrical leakage, heat, and mechanical damage, which is a critical safety feature for high-voltage cables.

Specifications

• Weight:30Kgs/100m
• Packaging:100m,500m,1000m
